China SS304 Type A DN25 Camlock Quick Coupling Quick Connect Fittings

  • 200 - 499 Pieces
    $1.68
  • 500 - 999 Pieces
    $1.53
  • >=1000 Pieces
    $1.31
Type:
Coupling
Pipe size:
10mm 12mm 14mm 50mm 30mm
Material:
Stainless Steel
Lead Time:
Quantity(Pieces) 1 - 100 101 - 500 501 - 1000 >1000
Est. Time(days) 10 20 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
Tongqu
Model Number:
Type A Camlock Quick Coupling
Connection:
Male
Technics:
Casting
Shape:
Reducing
Head Code:
round
Medium:
water,oil,gas and corrosive meduim
Thread Type:
BSPP,BSPT,NPT DIN2999
Product Type:
A,B,C,D,E,F,DC,DP Camlock coupling
Size:
1/4''-8''
Applicable temperature:
-54~+180℃.
certificate:
ISO9001,CE
Supply Ability
Supply Ability:
5000 Piece/Pieces per Week stainless steel quick connect coupling
Packaging & Delivery
Packaging Details
Camlock coupling are packed in pcs/polybag,polybag/carton,cartons/pallet or as your requiremen
Port
Tianjin , China
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 100 101 - 500 501 - 1000 >1000
Est. Time(days) 10 20 30 To be negotiated

China SS304 Type A DN25 Camlock Quick Coupling Quick Connect Fittings

Product Intropduction

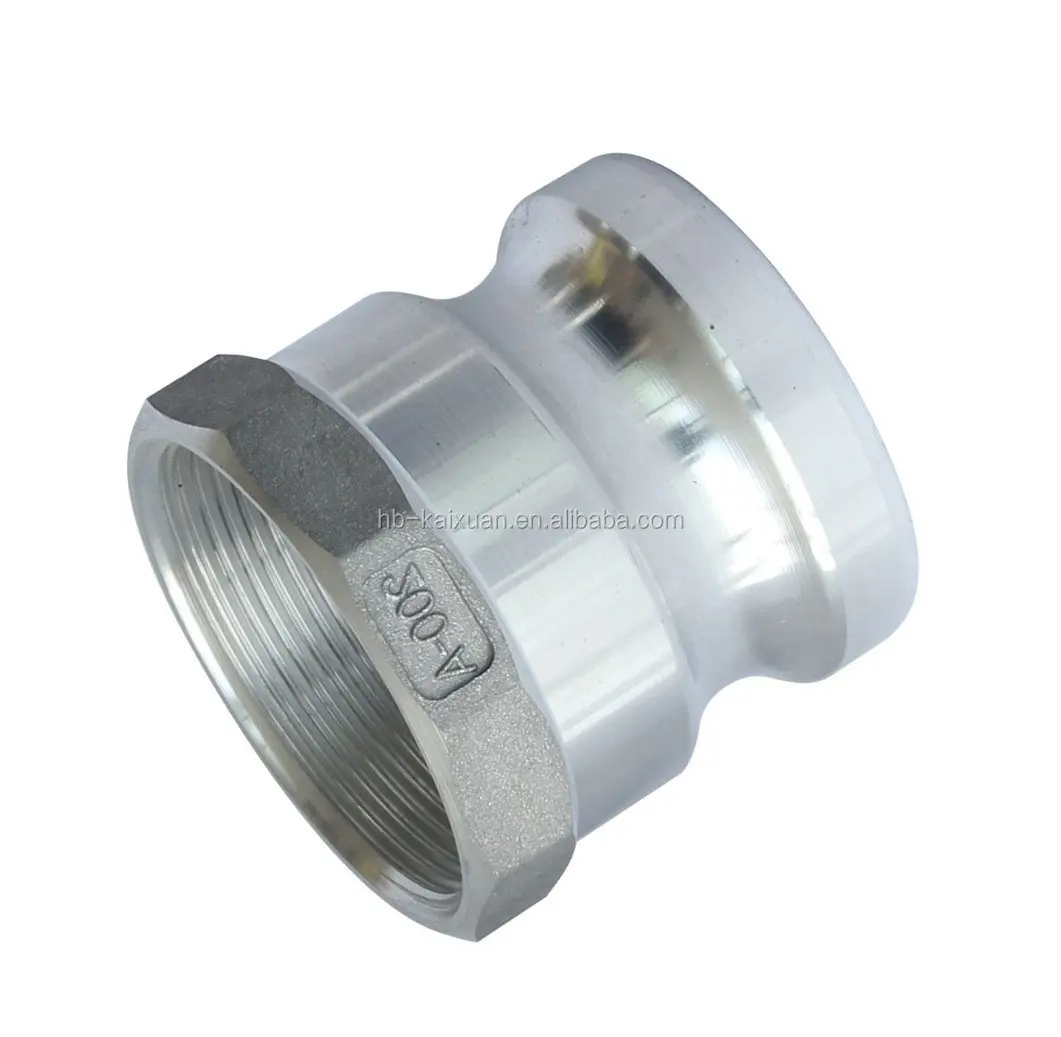

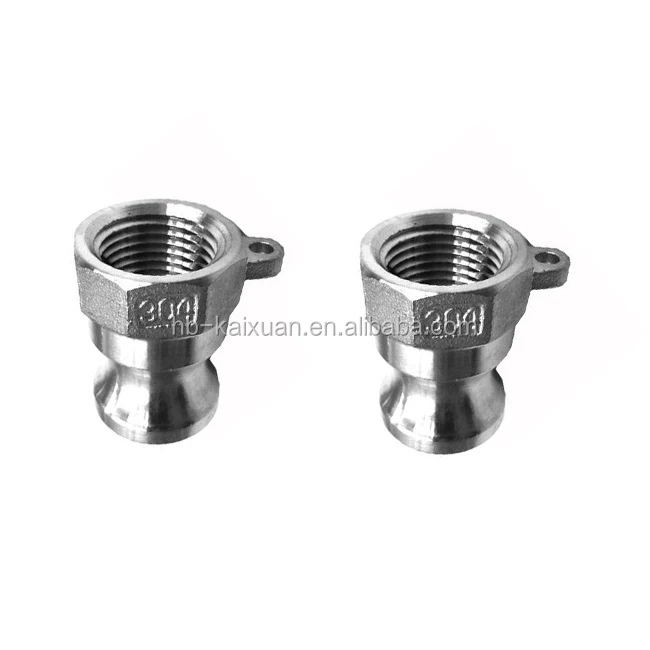

quick coupling typeA.jpgCamlock Fitting Type A.jpg

                                                                                         DN25 SS304 TypeA



 Supply High Quality Stainless Steel 304/316 Type A to DP Camlock Coupling Quick Coupling

Camlocks also called cam and groove coupling, a kind of hose coupling used to rapidly connect and disconnect fitting on piping or hose, they come in a variety of materials to be used with different liguids and a variety of sizes to accommodate hose or piping diameter.



  >>>>>>Inquiry

Product Specification
Camlock Quick Coupling
Materialstainless steel ANSI 304,316,304L,316, Aluminum
Size1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4", 5", 6", 8" etc
ThreadThread BSP, BSPT, NPT, DIN259/2999
TypeA, B, C, D, E, F, DC, DP(A, B, D, F with thread, B, C, D, DC with handles)
Type "A", has a male grooved adapter and a female pipe thread (BSP or NPT thread)of the same size
Type "B", has a female camlock end and a male pipe thread of the same size
Type "C", has a female camlock on one end and a male hose tail on the other
Type "D", has a female camlock end and a female pipe thread of the same size
Type "E", has a male camlock on one end and a male hose tail on the other
Type "F", has a male grooved adaptor and a male pipe thread of the same size
Cam leversWe use stainless steel cam levers
Pressure

3/4"-2" 250PSI(17.6bar),3"-4" 200PSI(14.8bar)

2 1/2" 225PSI(15.8bar),6" 150PSI(10.5bar)

TechnologyInvestment casting.precision casting,CNC machine
Packingpcs/polybag, polybag/carton ,cartons/pallet or according to your requirement
CertificateISO9001:2000 & CE
ProcessCNC machine,Testing equipment
ApplicationQuick release coupling for low-pressure systems
Advantages

1.Simple strcture,convenient operation,quick connect and open it.
2.compact size,light weight,good sealing and interchangeability.
3.Adapt to all kinds of working conditions, widely used in liquid, powder and other medium.
4.Joint connected with taper pipe threads,outside taper pipe threads,intubation connection,flange connection,etc.

                                 >>>>> > contact us
Relaxted Product



stainless steel camlock quick coupling related product.pngstainless steel pipe fitting .pngstainless steel ball valve.png

                                                                  >>>>>> Pleaase tell us your requestment

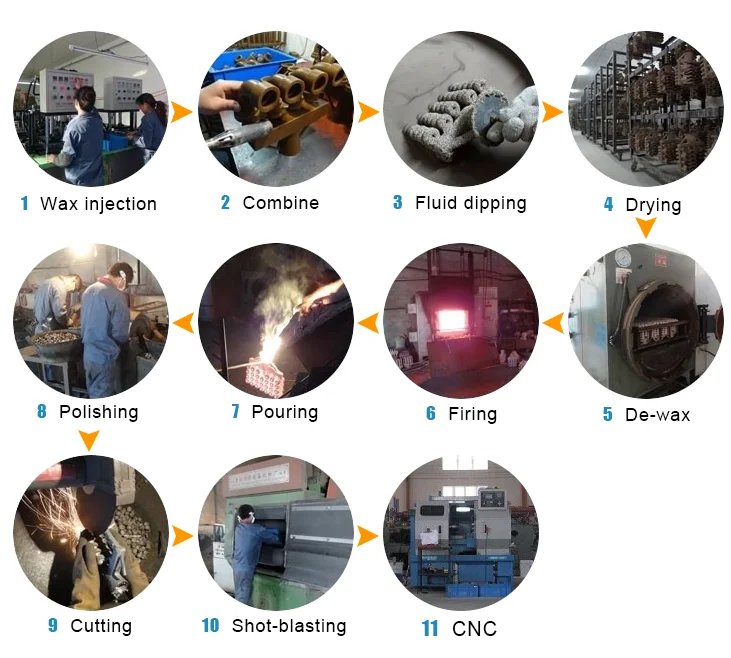

Product Process

1. Do the product mold, wax mould processing.

2. The combination type wax.

3. To set a good wax mucilage, 4-5 times

4. Dry processing.

5. In the heart of the dewaxing kettle wax processing.

6. In the high temperature furnace roasting.

7. The key casting operations.

8. The product grinding.

9. The product cut apart.

10. for blasting processing.

11. CNC machining thread.

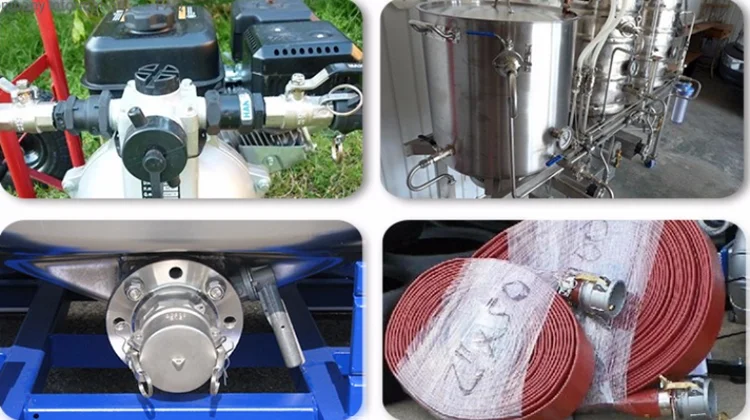

Product Application



stainless steel camlock quick coupling application.png

                                                                                        >>>>>> Contact Us

Product Packing & Shippling

Packing :

1).Our regular packing is that the ball valve and parts are placed in the carton,

finally are placed on the pallet or in a big wooden case if the customers have this

requirement of package of camlock quick coupling.

2).Of course if the customers have specifical packing requirement, we can make adjustment according to your request.

3).Standard Carton Size:32cm×22cm×20cm

4).Standard Wooden Case Size:105cm×105cm×95cm

5).Sually,48 small cartons are loaded into a big pallet.(We can make adjustment on the size according to the cargo quatity.)

stainless steelcamlock quick coupling packing.pngshipping.png

Our Company


Our Certification




FAQ
