food grade 3/8 stainless steel mini ball valve FM

FOB Reference Price:Get Latest Price
$2.92 - $7.57 / Piece | 10 Piece/Pieces mini ball valve (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
mini ball valve
Model Number:
mini ball valve
Application:
General
Material:
Stainless Steel
Temperature of Media:
High Temperature
Pressure:
1000WOG
Power:
Manual
Media:
gas ,water ,oil
Port Size:
1/8-1inch
Structure:
BALL
material:
CE8M(SS316),CF8(SS304)
threaded:
BSPT,BSP,BSPP,NPT,DIN
keyword:
mini ball valve
Application of medium:
oil,water,gas
OEM:
Available
Application industry:
Agriculture, metallurgy, chemical, industry
Material testing:
Germany spectrum analyzer
Certification:
ISO 9001, CE
advantage:
health, high pressure,service life is long
production process:
Silica sol precision casting, CNC process
Standard or Nonstandard:
Standard
Supply Ability
Supply Ability:
2000 Piece/Pieces per Day mini ball valve
Packaging & Delivery
Packaging Details
mini ball valve:
Normal packing(plastic film inside,then carton,pallet) or as your requirement.
Port
tianjin xingang
Lead Time :
Shipped in 3 days after payment

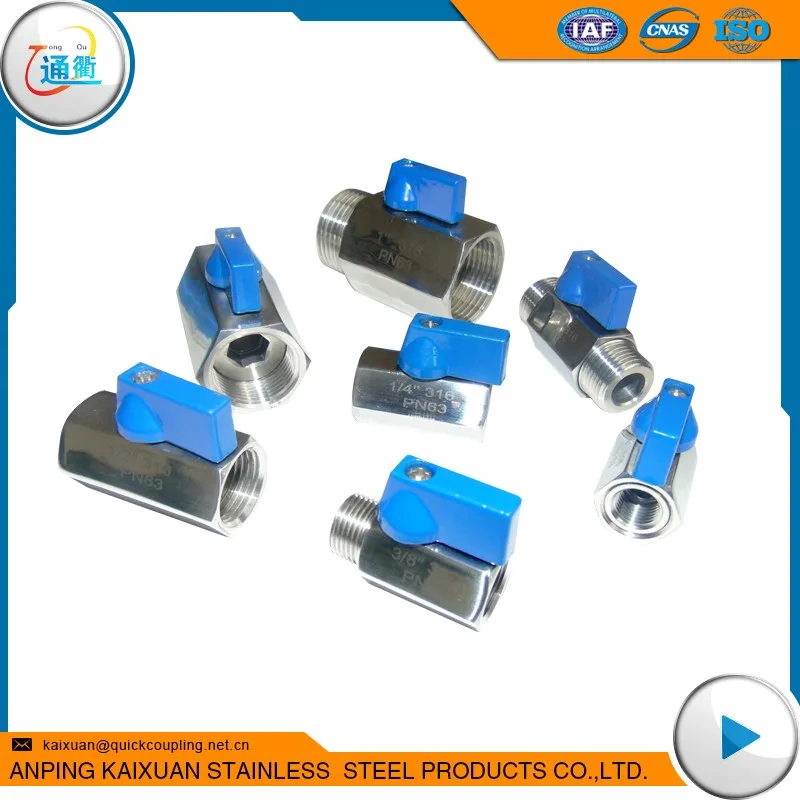

Product Show

                                                                                                     >>>>>> Contact us

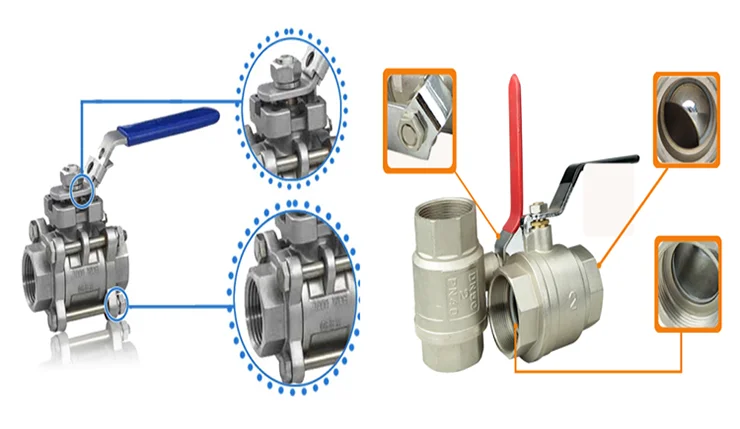

Product Design

                                                                                            >>>>>> Please tell us your inquirement

Material List
1BodyCF8M1
2End CapCF8M2
3BallCF8M1
4Stem3161
5Ball SeatPTFE2
6Stem PackingPTFE2
7Gland Nut3041
8End SealPTFE2
9Thrust WasherPTFE1
10Handle3041
11Stem Nut3048
12Spring Washer3041
13Locking Device3041
14Bolts3044
15Bolts Nut3048
16Bolt Washers3048
17Plastic SleevePVC1
                        >>>>>> pleasae tell us your requestment
Product Description
Product Name3pc 1000WOG Stainless Steel Female Thread Ball Valve
MaterialStainless Steel 304/316/304L/316L/WCB
Size1/4"-4"
PortFull Port
Connection EndsFemale Thread ,NPT/BSPT/BSPP/DIN
Pressure1000PSI
Temperature-20~300oC
Seal MaterialPTFE/RPTFE/PPL
LockingOption
Inspecting &TextingAPI598
CertificateISO9001,CE
Delivery Time10-15 days after payment,according to the order
PackageStandard Exporting wooden case or pallet and carton and plastic bag
Shipping PortTianjin Port , according to your requestment .
Shipping TermsExw/FOB/CFR/CIF , so on
Payment TermsT/T, Western Union, Paypal,one touch ,etc.
30% in advantage, 70% Balance Paid before Shipping
ApplicationChemical Industry, Petro-chemical Industry, Plant Construction, Power Plant Engineer, Paper & Pump Industry, Mining,Gas Utilities, Environment Technologies, Steam Generation, Drink Water, Sewage Water Industry,etc.
Warranty18 Months after Leaving Factory
AdvantageOEM/ODM is Applicable
                   >>>>>> Contact Us
Product Features

1)Investment casting body and cap

2)Working pressure 1/4' -2'' 1000PSI , 2 1/2''-4'' 800 PSI

3)Adjustable stem packing

4)Pure teflon seals and seats

5)Temperature range : -60 to 450o F

6)Blow-out proof stem

7)100% leakage tested at 100PSI air under water

8)Hydrostatic test pressure : 1/4''-2'' 1500PSI , 2 1/2''-4'' 1200PSI

9)Locking device (optional)

                                                                               >>>>>> Tell Us Your Inquiry

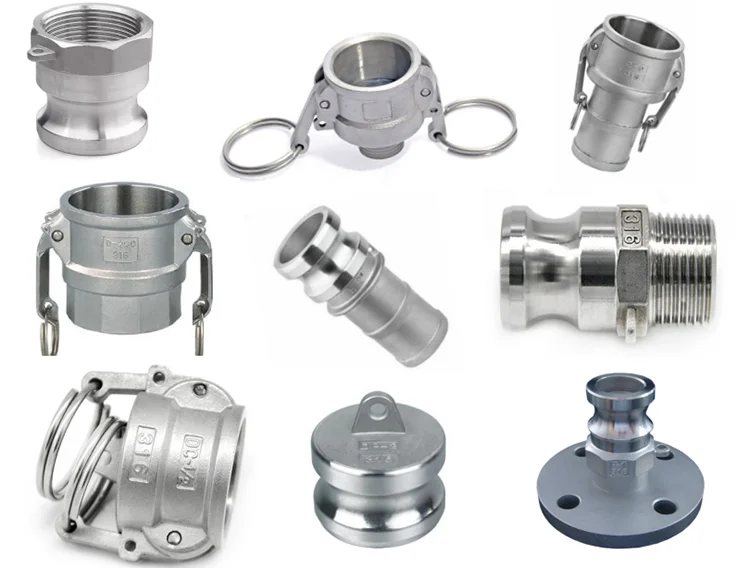

Relaxted Product

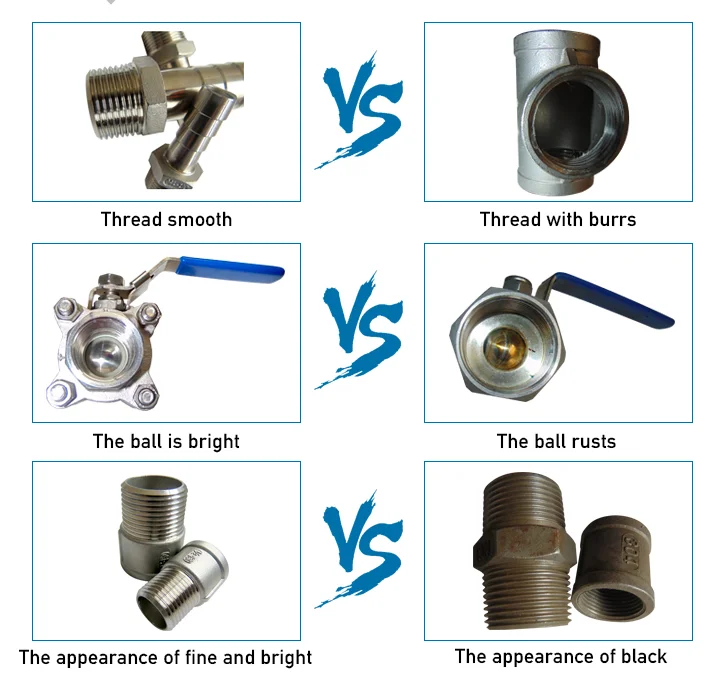

Product Compared

Our Service

Product Process

1. Do the product mold, wax mould processing.

2. The combination type wax.

3. To set a good wax mucilage, 4-5 times

4. Dry processing.

5. In the heart of the dewaxing kettle wax processing.

6. In the high temperature furnace roasting.

7. The key casting operations.

8. The product grinding.

9. The product cut apart.

10. for blasting processing.

11. CNC machining thread .

Product Application

                          >>>>>> Please tell us your inquiry

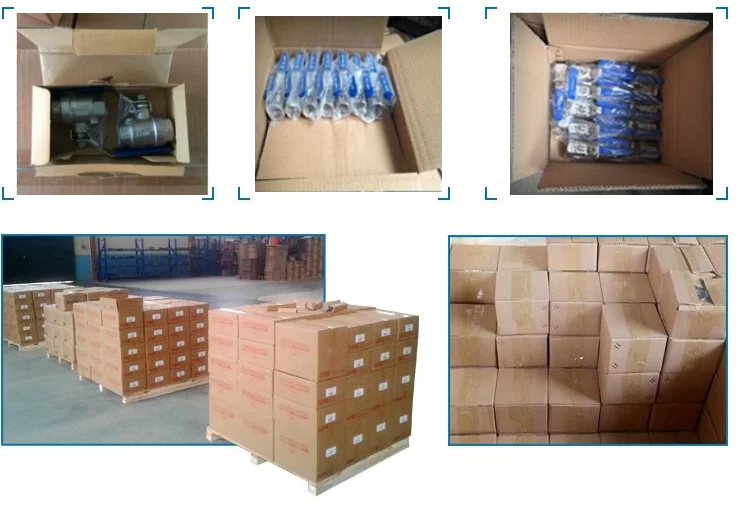

Product Packing & Shippling

Packing :

1). Our regular packing is that the ball valve and parts are placed?in the carton,finally are placed on the pallet or in a big wooden case ,if the customers have this requirement of package of ball valve.

2). Of course if the customers have specifical packing requirement, we can make adjustment according to your request.

3). Standard Carton Size:32cm×22cm×20cm

4). Standard Wooden Case Size:105cm×105cm×95cm

5). Sually,48 small cartons are loaded into a big pallet.(We can make adjustment on the size according to the cargo quatity.)
