Made In China Female Threaded Casting Stainless Steel 6 Inch Water Gate Valve

  • 100 - 499 Pieces
    $4.59
  • 500 - 999 Pieces
    $4.28
  • >=1000 Pieces
    $4.03
Size:
1/4in 3/8in 1/2in 3/4IN 1in 1 1/4in 1 1/2in 2in
Material:
Stainless Steel
Pressure:
Low Pressure
Lead Time:
Quantity(Pieces) 1 - 100 101 - 500 >500
Est. Time(days) 20 35 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
Tongqu
Model Number:
casting stainless steel 6 inch water gate valve
Application:
water,oil,steam, water,oil,steam
Power:
Manual
Temperature of Media:
Low Temperature
Structure:
Ball
Media:
Water
Port Size:
1/4''-4''
Type:
Gate Valves
Standard or Nonstandard:
Standard
Certification:
CE,ISO9001
Connection:
Female Thread
Export Markets:
the whole world
production process:
Silica sol precision casting, CNC process
Material testing:
Germany spectrum analyzer
advantage:
health, high pressure,service life is long
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month casting stainless steel 6 inch water gate valve
Packaging & Delivery
Packaging Details
Single valve is packed with foam plastic bag. A shipment of valves are packed with plywood case.
Port
Tianjin , China
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 100 101 - 500 >500
Est. Time(days) 20 35 To be negotiated

  made in china female threaded casting stainless steel 6 inch water gate valve



Product Description

     paste-pic-dp_uuid_e3dyipaste-pic-dp_uuid_9bfsu



 1) SIZE:1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2'' 3'' 4''

 2) MATERIAL:SS316 (CF8M) , SS304 (CF8)

 3) Blow-Out Proof Stem

 4) Investment Casting Body/CAP

 5) W.T:  -60℃-450℃

 6) Suitable Medium: Water, Gas, Oil, Air and Some Corrosive Liquid

 7) Sealing Material: PTFE Soft Sealing

 8) Thread Acc: BSPT , NPT , BSPP , DIN.

 9)  Design Standard: AISI



The standard material of the products are as follows:



 C%Mn%Si%S%P%Ni%Cr%Mo%
304<0.08<2.00<1.00<0.03<0.0458-1118-20
316<0.08<1.50<1.50<0.04<0.0410-1216-212-3
Material List



No.Part NameMaterialQuantity

1

BodyCF8M

1

2End CapCF8M

2

3BallCF8M1
4Stem3161
5 Ball Seat PTFE2
6Stem PackingPTFE2
7Gland Nut3041
8End SealPTFE2
9Thrust WasherPTFE1
10Handle3041
11Stem Nut3048
12Spring Washer3041
13Locking Device3041
14Bolts3044
15Bolt Nuts3048
16Bolt Washers3048
17Plastic SleevePVC1
SizeDL+/-0.5HE
1/4''12.757.5045.5099.5
3/8''12.759.0045.5099.5
1/2''15.062.8048.0099.5
3/4''20.078.0061.50126.5
1''25.082.2068.00126.5
1-1/4''32.097.6079.00153.0
1-1/2''38.0107.6086.50153.0
2''50.0119.7094.50192.0
2-1/2''65.0167.20119.50248.0
3''76.0175.60130.00248.0
4''100.0219.50167.00320.0
Features

1).investment casting body and cap

2).working pressure 1/4’’-2’’  1000PSI , 2-1/2’’-4’’ 800 PSI

3).adjustable stem packing

4).pure teflon seals and seats

5).Temperature rang: -60 to 450 degrees F

6).100%leakage tested at 100PSI air under water

7).hydrostatic test pressure:1/4’’-2’’1500PSI, 2-1/2’’-4’’ 1200PSI

8).locking device(optional)

9).blow-out proof stem

Product Process

Production Flow

Test Machine

1.2

Packaging & Shipping

1.Packing :

♦  Our regular packing is that the ball valve and parts are placed in the carton, finally are placed on the pallet or in a big wooden case if the customers have this requirement of package of ball valve.

♦  Of course if the customers have specifical packing requirement, we can make adjustment according to your request.

♦  Standard Carton Size: 32cm×22cm×20cm

♦  Standard Wooden Case Size: 105cm×105cm×95cm

♦  Sually,48 small cartons are loaded into a big pallet.(We can make adjustment on the size according to the cargo quatity.)

packing1packing2packing3    HTB1F7.tLFXXXXanXVXXq6xXFXXXc.jpg



2.Shipping:










Certification

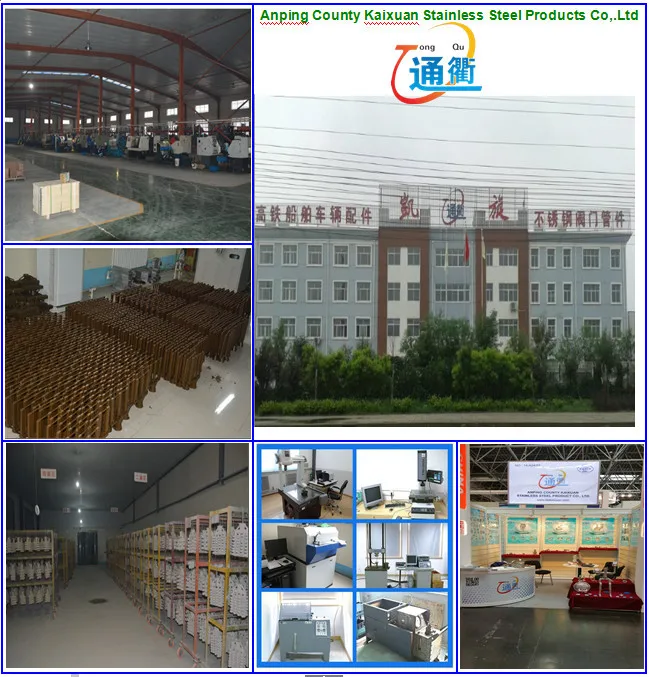

Company Information

KX




Q1.Where is your factory?

  Our company located in Anping , China .

Q2.What material do you have?

SS304/SS201/SS316

Q3.Can you provide sample for us?

 Yes, free sample is available

Q4. How do you ensure quality control?

we ensure the quality control by 2 steps: 1)after finish, our workers will check it one by one. 2)our package department will check before they pack.

Q5.How do you ship the goods to us?

We have the forwarder cooperated with us for 2 years, they can deliver the goods to you in very

short time with competitive price,and you can ship by your own agent as your convinence.

Q6.Which country is your main market now?

Mid-East, North Africa, West Africa, South-east Asia, South America and Northern Europe district.

Especially, a firm customer base in Japan, the United States, Germany, Spain and Australia , etc.

Q7. Can you do the full set of handrails for us?
yes we can, our engineer will check your project drawings to make sure its accuracy for each

different fittings and quantity.

Q8. How about your delivery time ?
7-15 days for Pipe.15-20 days for handrail fittings .

Q9.how about your payment terms?

T/T,L/C,D/P, so on



Application :

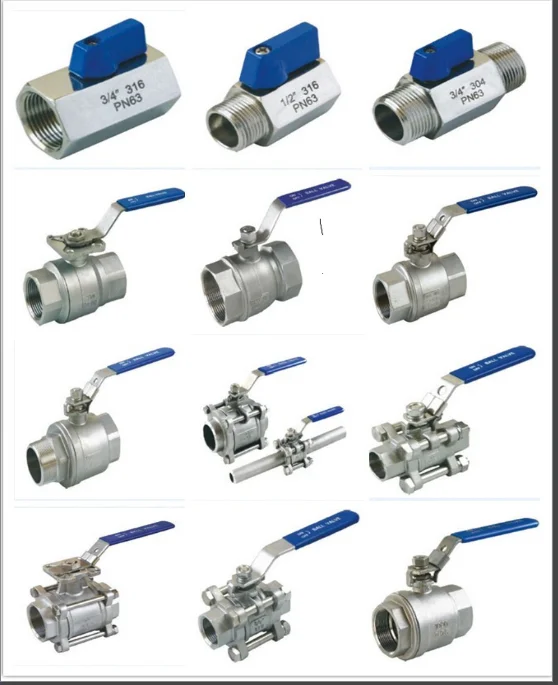

Other Product :
