Stainless Steel Camlock Type D

FOB Reference Price:Get Latest Price
$2.04 - $20.29 / Piece | 50 Piece/Pieces (Min. Order)
Type:
quick coupling
Pipe size:
1/2''-6''
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
tongqu
Model Number:
kxssc
Material:
Stainless Steel
Technics:
Casting
Connection:
Male
Shape:
Reducing
Head Code:
round
sample:
free
Size:
1/4"--6"
Medium:
water,oil,gas and corrosive meduim
Thread Type:
BSPP,BSPT,NPT DIN2999
Application:
Petroleum, chemical industry, tank car, gas and so on
Product Type:
A,B,C,D,E,F,DC,DP Camlock coupling
Applicable temperature:
-54~+180℃.
Nominal pressure:
1.65MPA
certificate:
ISO9001,CE
advantage:
durable ,corrosion resistand, health
Supply Ability
Supply Ability:
1000 Piece/Pieces per Day urgent orders can provide overtime production
Packaging & Delivery
Packaging Details
Every 5 products put in thermoplastic film,then package by carbon,then in big and bear sea
shipments wooden case.
Port
Tianjin
Picture Example:
package-img

Stainless Steel Camlock Type D



Camlocks also called cam and groove coupling, a kind of hose coupling used to rapidly connect and disconnect fitting on piping or hose, they come in a variety of materials to be used with different liguids and a variety of sizes to accommodate hose or piping diameter.



  >>>>>>Inquiry

Product Specification
Camlock Quick Coupling
Materialstainless steel ANSI 304,316,304L,316, Aluminum
Size1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4", 5", 6", 8" etc
ThreadThread BSP, BSPT, NPT, DIN259/2999

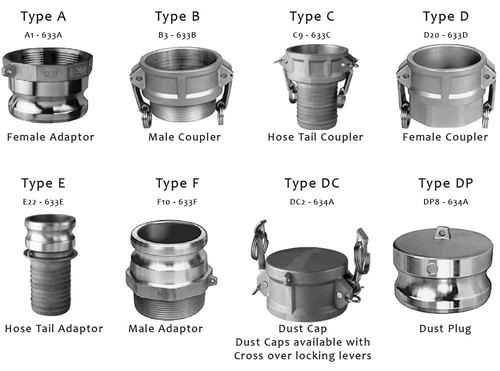

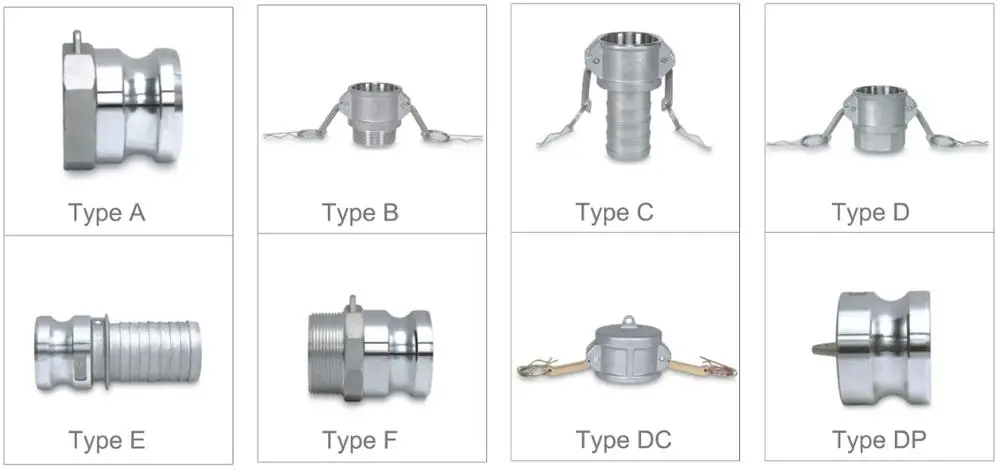

TypeA, B, C, D, E, F, DC, DP(A, B, D, F with thread, B, C, D, DC with handles)
Type "A", has a male grooved adapter and a female pipe thread (BSP or NPT thread)of the same size
Type "B", has a female camlock end and a male pipe thread of the same size
Type "C", has a female camlock on one end and a male hose tail on the other
Type "D", has a female camlock end and a female pipe thread of the same size
Type "E", has a male camlock on one end and a male hose tail on the other
Type "F", has a male grooved adaptor and a male pipe thread of the same size
Cam leversWe use stainless steel cam levers
Pressure

3/4"-2" 250PSI(17.6bar),3"-4" 200PSI(14.8bar)

2 1/2" 225PSI(15.8bar),6" 150PSI(10.5bar)

TechnologyInvestment casting.precision casting,CNC machine
Packingpcs/polybag, polybag/carton ,cartons/pallet or according to your requirement
CertificateISO9001:2000 & CE
ProcessCNC machine,Testing equipment
ApplicationQuick release coupling for low-pressure systems
Advantages

1.Simple strcture,convenient operation,quick connect and open it.
2.compact size,light weight,good sealing and interchangeability.
3.Adapt to all kinds of working conditions, widely used in liquid, powder and other medium.
4.Joint connected with taper pipe threads,outside taper pipe threads,intubation connection,flange connection,etc.

                                 >>>>> > contact us
Relaxted Product



                                                                  >>>>>> Pleaase tell us your requestment

Product Process

1. Do the product mold, wax mould processing.

2. The combination type wax.

3. To set a good wax mucilage, 4-5 times

4. Dry processing.

5. In the heart of the dewaxing kettle wax processing.

6. In the high temperature furnace roasting.

7. The key casting operations.

8. The product grinding.

9. The product cut apart.

10. for blasting processing.

11. CNC machining thread.

Product Application



                                                                                        >>>>>> Contact Us

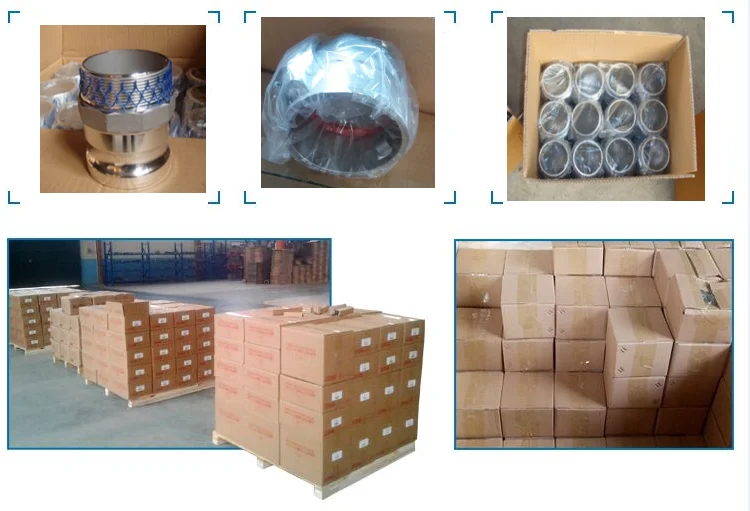

Product Packing & Shippling

Packing :

1).Our regular packing is that the ball valve and parts are placed in the carton,

finally are placed on the pallet or in a big wooden case if the customers have this

requirement of package of camlock quick coupling.

2).Of course if the customers have specifical packing requirement, we can make adjustment according to your request.

3).Standard Carton Size:32cm×22cm×20cm

4).Standard Wooden Case Size:105cm×105cm×95cm

5).Sually,48 small cartons are loaded into a big pallet.(We can make adjustment on the size according to the cargo quatity.)
