Stainless Automation Electric ball valve

  • >=50 Pieces
    $9.90
Size:
1/4in 3/8in 1/2in 3/4IN 1in 1 1/4in 1 1/2in 2in 2 1/2in
Type:
BALL VALVES
Material:
Stainless Steel
Pressure:
Medium Pressure
Lead Time:
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
kaixuan
Model Number:
TQ-MBV
Application:
Petroleum, chemical industry,etc.
Power:
Manual
Temperature of Media:
Medium Temperature
Structure:
Ball
Media:
Water
Port Size:
1/2"-4"
Standard or Nonstandard:
Standard
Standard:
ASME, ANSI, GB, DIN, EN, JIS, ISO
Thread Standard:
BSP,BSPT,NPT,DIN and ect
Temperature:
0°C-90°C
Valve type:
2-way and 3-way
Body material:
SS304,SS316, Brass
Protection class:
IP65
Life time:
100000
rated voltage:
DC 3-6V 12v AC/DC9-24V AC220V
Working current:
80mA
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month urgent orders can provide overtime production
Packaging & Delivery
Packaging Details
Normal packing(plastic film inside,then carton,pallet) or as your requirement
Port
tianjin xingang port
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 30 To be negotiated

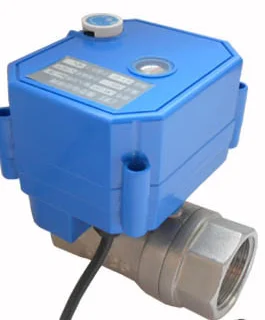

SS304/316/brass Motorized electric ball valve  for irrigation Drain water

Product

 15N .pngQQ20170403112926.png27_P_1347845838553.jpg

Specification

Open/close time: <5sec

Torque output: 2NM

function: indicator & manual function

Working pressure: 1.0 MPa

Pressure loss: below 0.1MPa

Control mode: two wire, three wire, five wire, etc.

Medium temperature: 0-100°C

Actuator rotation: 90 degree

Low working current: <80mA

rated voltage: DC 3-6V 12v AC/DC9-24V AC220V

Working medium:water,air,gas,etc.

Product life: 100,000 times

Protection Class:IP65



Special function:  Indicator, Manual Override

Body Materialstainless steel ANSI 304,316,304L,316L
Size1/8" 1/4'' 3/8'' 1/2'' 3/4'' 1'' 1-1/4'' 1-1/2'' 2'' 2-1/2'' 3'' 4'' 5'' 6"
ThreadNPT, BSPT, BSP, DIN
Pressure800PSI/1000PSI/150LBS/2000PSI,etc.
TechnologyInvestment casting.precision casting,CNC machine
StandardJIS, GB, BS, ANSI, ASTM, DIN
Pakagepcs/polybag, polybag/carton ,cartons/pallet or according to your requirement
CertificateISO9001:2008 & CE
Applicationused as linkages of pipes for the transportation of water ,oil, gas and every kind of corrosive suitable for stainless steel.
NoteOEM and Customized service can be provided




Product Process

 stainless steel pipe fittings process.png

Product Application

 pipe fittings application.png

Quality Inspection

Control the quality: all products have to go through 14 checks in the whole manufacturing process.
Every batch of raw material composition will be inspected by Germany spectrum analyzer equipment.

stainless steel pipe fittings quality inspection.png

Our Quality VS Others

 our quality vs others.png

Packing and Shipping

1>packed in pcs/polybag,polybag/carton,cartons/pallet or Wooden case

2>standard carton size: 32cm×22cm×20cm
3>standard wooden case size: 105×105cm×95cm
4>or as your requirements

5>delivery by Sea, by Air, by UPS/FedEx/DHL/TNT,etc.pipe fittings package.pngdelivery.png

Our Company

 We are a investment casting foundries with machining and assembling capability.



15 years experience, 110 employees, annual output up to 1000 tons, ISO, CE & SGS certificated, zero defect.
Main products: stainless steel pipe fittings, ball valves, camlock coupling and special customized
(special pipeline of subway, city trains and motor trains,etc.)
Control the quality: all products have to go through 14 checks in the whole manufacturing process.


We cooperate with International Brand and supply to America, Japan, Europe, etc for over 10 years.

Our company's aim is "quality first, service first, credibility first" and "reciprocity. " stainless steel pipe fittings company.jpg

Certificate


Why Choose us

 why choose us.png

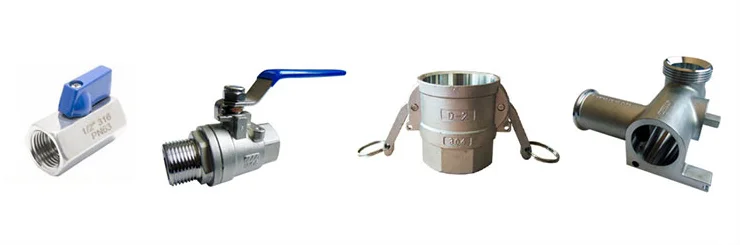

Related Products

 pipe fittings related products.png

       Mini ball valve                             ball valve                                                              Couplings                                   special customized
